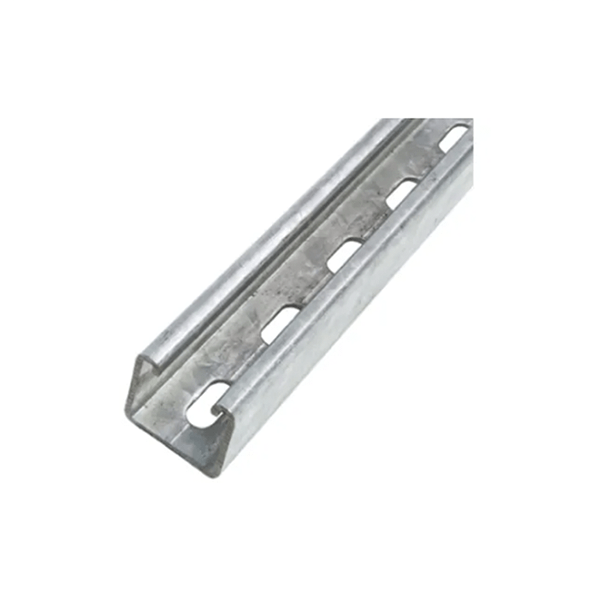

STRUT 600

Standard Strut System

Creates sturdy metal structures that are capable of supporting electrical conduits, cables, panel boxes and other pieces of Ventilation equipments


Model
SSS
Standard Lengths Lengths
3M, 6M or length customized
Features
1. Strut section is manufactured from low carbon strip steel to the following AS standards

2. Having Reinforce Ribbed structure design, enhance flexural strength and stiffness


3. Inturned edge teeth increase the anti slip coefficient

4. Materials complied to AS1594 and AS1365

5. Finish complied to AS1789 and AS/NZS4680

Construction
1. 12 x 30mm slots are punched continuously at 38mm centres

2. 3M or 6M standard length

3. Nuts and fasten fitting optional

Application Creates sturdy metal structures that are capable of supporting electrical conduits, cables, panel boxes and other pieces of Ventilation equipments
Standards Fully complied to: AS1594 and AS1365 (Materials) ; AS1789 and AS/NZS4680 (Finish)
Drawing

Technical Data

Model Thickness Length Material Finish Production
41 x 41 x 2.5 X 6M PG 2.5 mm 3M / 6M Q235B PG ( Zinc Plated ) Cold roll forming
41 x 41 x 2.5 X 6M HDG 2.5 mm 3M / 6M Q235B HDG ( Hot Dipped Galvanized ) Cold roll forming
41 x 21 x 2.0 X 6M PG 2.0 mm 3M / 6M Q235B PG ( Zinc Plated ) Cold roll forming
41 x 21 x 2.0 X 6M HDG 2.0 mm 3M / 6M Q235B HDG ( Hot Dipped Galvanized ) Cold roll forming
