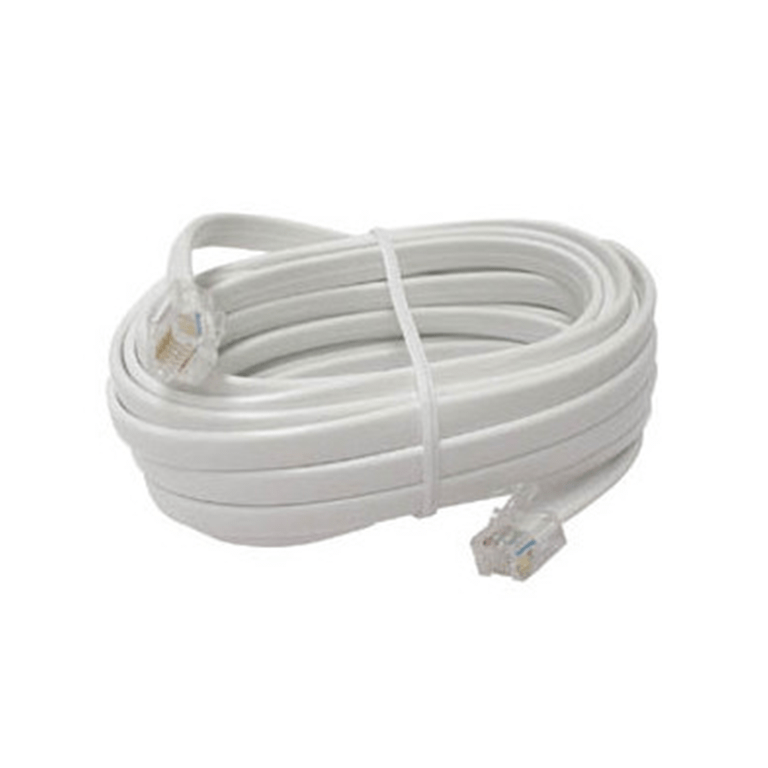

Zoning Cable
Excellent choice for long distance data transition with no signal loss
C2:
| Model | CBL |
| Dimension | Total Length: 10M, 15M or Customized |
| Features |
1. Ultra thin flat design, suitable for any turning corners and under carpet.2. Can be used to connect Zone to Control Panel or Data transit between Master and Slave Zone Control Panel.3. Excellent choice for long distance data transition with no signal loss.4. 26AWG core specification (better than regular 28AWG)5. Standards: CAT3, 6P6C, 4P4C |
| Structure |
1. Oxygen-Free 7 x 0.16mm Copper conductor core2. 3U Rating RJ/RJ12 Modular Connectors with Gold-Plated Conductors3. Eco friendly PVC outer jacket with I.D 0.95mm core4. O.D 6.6 x 2.4mm Flat shape |
| Application |
1. Excellent choice for long distance data transition with no signal loss |
| Standards | Fully complied to: UL20251, ROHS, 26AWG |
| Certificate | UL E255388 |
| Drawing |

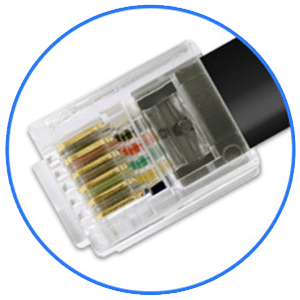

Connectors with Gold-Plated Conductors

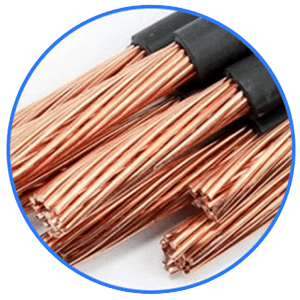

Oxygen-Free 7 x 0.16mm Copper wire

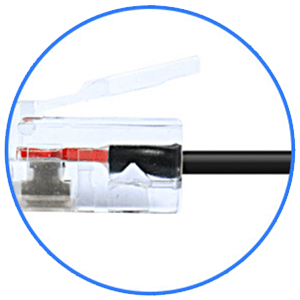

Eco-Friendly PVC jacket

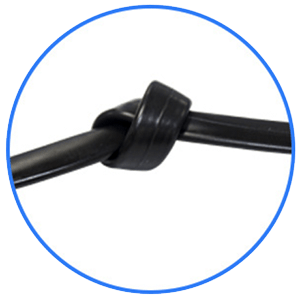

Ultra thin Flat shape design
Technical Data
| Model | Standards | Structure | Length | Color | Application |
|---|---|---|---|---|---|
| CBLW – 15M | UL 20251, ROHS | RJ12 6P6C - Crossover | 15 M | White | Connecting Zone damper to Control Panel |
| CBLW – 10M | UL 20251, ROHS | RJ12 6P6C - Crossover | 10 M | White | Connecting Zone damper to Control Panel |
| CBLB – 15M | UL 20251, ROHS | RJ12 6P6C - Straight | 15 M | Black | Connecting Zone damper to Control Panel |
| CBLS – 15M | UL 20251, ROHS | RJ11 4P4C - Straiht | 15 M | Blue | Data transit between Master and Slave Panel |
